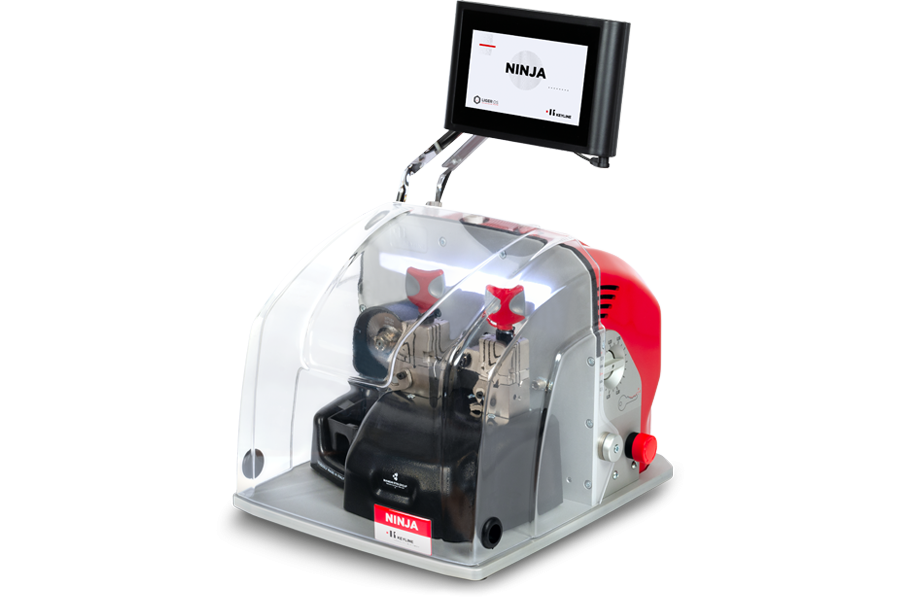

Ninja is the first and only compact, high precision key cutting machine for single-sided and double-sided flat keys, with code cutting, duplication and decoding functions.

Its compact dimensions and attractive design make it appropriate for all work environments, from the most complete and professional structures to the small shops requiring an optimal use of space. The machine offers a single solution that joins  the simplest functions with the most evolved ones, for more expert locksmiths.

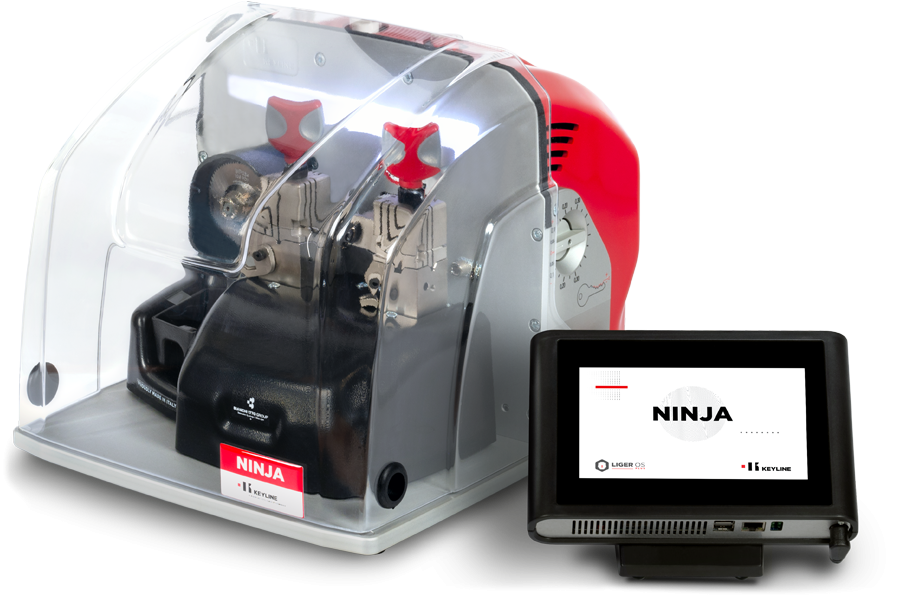

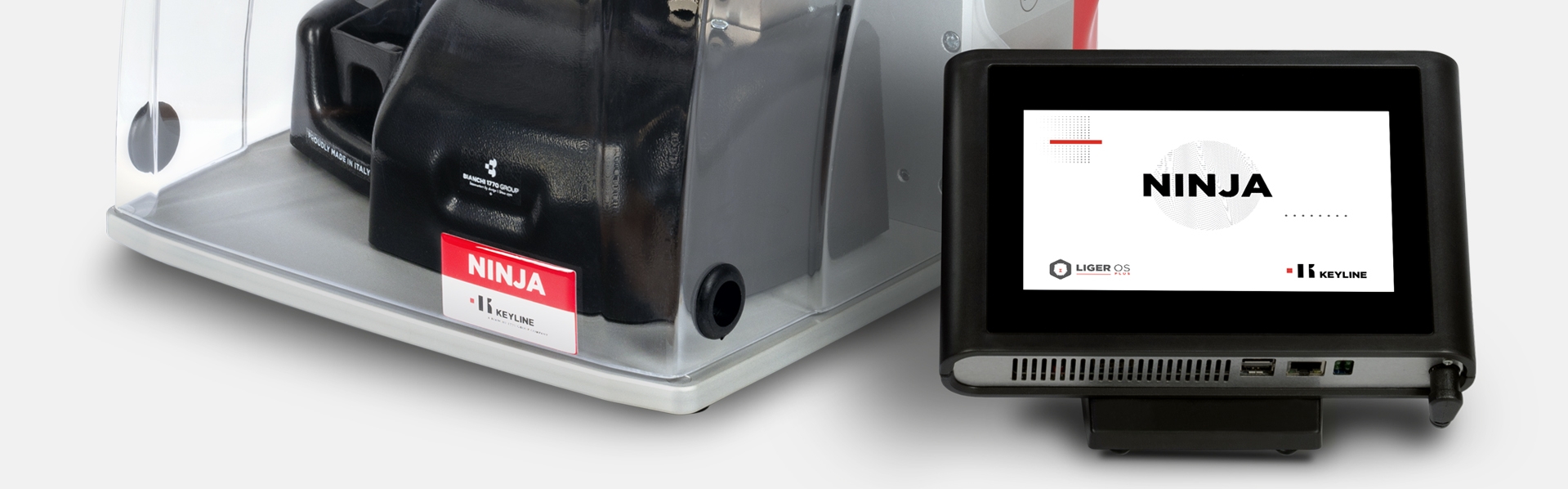

Ninja is controlled through a light, portable console, designed to be placed either on top the machine, on the work bench or on the wall.

It has a stand-alone mode, used to run the basic duplication functions at an unparalleled speed, guaranteeing maximum precision and reliability, without need of a console or PC connection.

The Liger software developed by Keyline stands out for its capacity to process every cutting system and easily receive software updates. Complex operations are made extremely simple and intuitive thanks to the modern color interface, which is simple and easy to learn.

Its next generation software includes several very useful functions, including the management of multiple users, the saving of the cut keys, the importing of customised data, an on board user manual and the possibility of downloading the updates from the net.

Ninja is equipped with the same exhaustive key database already installed in other Keyline products, so that the user can operate it with the utmost ease of use and speed in every circumstance.

The high technology on which it is based gives virtually unlimited possibilities of expansion, providing the locksmith with a valuable tool for the workplace in the new millennium.

power_supply

Power supply

90-130V 50-60Hz / 220-240V 50-60Hz
absorption

Absorption

250W (35W in stand-by)
caliber

Gauge

Automatic gauge unlock through the movement of the axes
external_connections

External connections

2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port
dimensions

Dimensions

Width 340 mm / Depth 415 mm / Height 300 mm
electronic_equipment

Electronic equipment

Mainboard with ARM Cortex A8 CPU, 256 MB RAM, NAND 1 GB memory, high resolution axes control
cutter

Cutter

In Widia Ø 63 mm
lighting

Lighting

LED - lighted cutting bay
clamps

Clamps

4 faces (more clamps are available for specific markets)
motor

Motor

Asynchronous, 0.18 KW
movements

Movements/axes

2 stepper motor-operated axes
weight

Weight

20 kg
key_reading

Key reading systems

Electric contact
cutter_speed

Cutter speed

1500-3000 rpm (variable speed according to the programmes)
