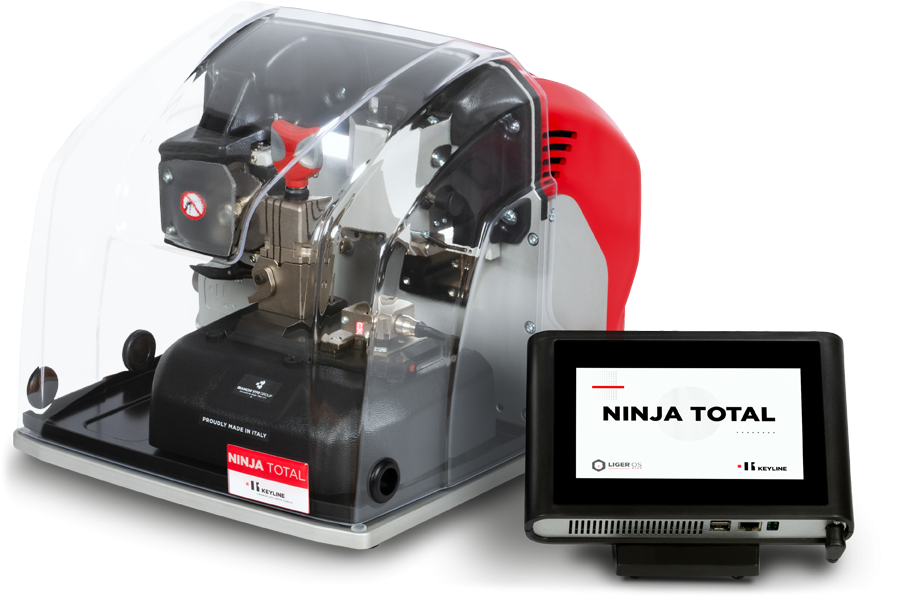

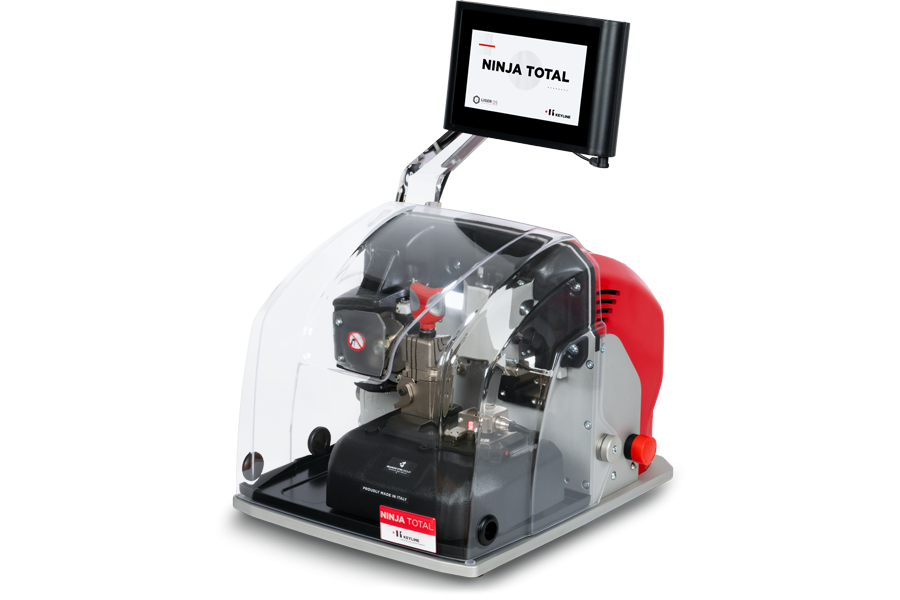

Ninja Total is the exclusive all-in-one electronic key cutting machine that copies, decodes and codes edge cut keys and decodes and codes laser and dimple keys.

Ninja Total is the ideal machine for all the locksmith who want to offer a key cutting service with a complete and high-performing tool.

Versatile and complete. The combination of two key-cutting stations makes it possible to cut both residential and car keys, with a single machine, quickly and easily, without sacrificing quality and precision during the cutting process. Ninja Total is available with the optional engraving function for the head of the keys, through the dedicated C25 clamp.

Quick and performing. The high quality technology based on the combined action of three axes and two powerful motors allowing single passage key cut.

New clamp. Ninja Total is equipped with the new, exclusive C30 single clamp for the majority of dimple and laser keys, and with a large set of small milling cutters to cut the most popular keys.

Ergonomic and sturdy. The Keyline “Ninja” design is a symbol of solidity and compactness. Easy to handle and use,thanks to its wide operating station, Ninja Total is the ideal tool in all situations, for all jobs and environments.

Easy and intuitive. The advanced Liger Software developed by Keyline makes Ninja Total easy to use through an intuitive user interface, supported by a strong and stable industrial console which allows the quick access to one of the most complete key databases in the market.

Patented technology. Innovation and quality are guaranteed by extensive international protection: Patent for Utility Model for the double cutting station and Patent pending for the sliding reading group.



power_supply

Power supply

90-130V 50-60Hz / 220-240V 50-60Hz
absorption

Absorption

250W (35W in stand-by)
caliber

Gauge

FLAT KEY SIDE: Automatic gauge unlock through the movement of the axes
external_connections

External connections

2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port
dimensions

Dimensions

Width: 340mm / Depth: 415mm / Height: 300mm
electronic_equipment

Electronic equipment

Mainboard with ARM Cortex A8 CPU, 256 MB RAM, NAND 1 GB memory, high resolution axes control
cutter

Cutter

FLAT KEY SIDE: In Widia ø 63 mm LASER KEY SIDE: In Widia
lighting

Lighting

2 LED STRIPS - lighted cutting bay
clamps

Clamps

FLAT KEY SIDE: 4 faces (more clamps are available for specific markets) LASER/DIMPLE KEY SIDE: C30
motor

Motor

FLAT KEY SIDE: Asynchronous, 0.18 KW LASER KEY SIDE: DC electronic motor
movements

Movements/axes

3 stepper motor-operated axes
weight

Weight

30 kg
key_reading

Key reading systems

FLAT KEY SIDE: mechanical tracer with linear sensor. LASER, DIMPLE KEY SIDE: electric contact
cutter_speed

Cutter speed

FLAT KEY SIDE: 1500-3000 rpm (variable speed according to the programmes) DIMPLE KEY AND LASER KEY SIDE: 13.000 rpm
